JS-20 (JS20)
JS-20 Electric Concrete Transfer Pump – 22 kW, 10 m³/h
22 kW electric concrete transfer pump with a listed output of 10 m³/h for construction engineering and secondary structure column work.
The JS-20 electric concrete transfer pump is intended for construction engineering and secondary structure column work. The listing specifies a 22 kW motor, an output of 10 m³/h, a maximum horizontal conveying distance of 100 m and a maximum vertical conveying distance of 40 m.

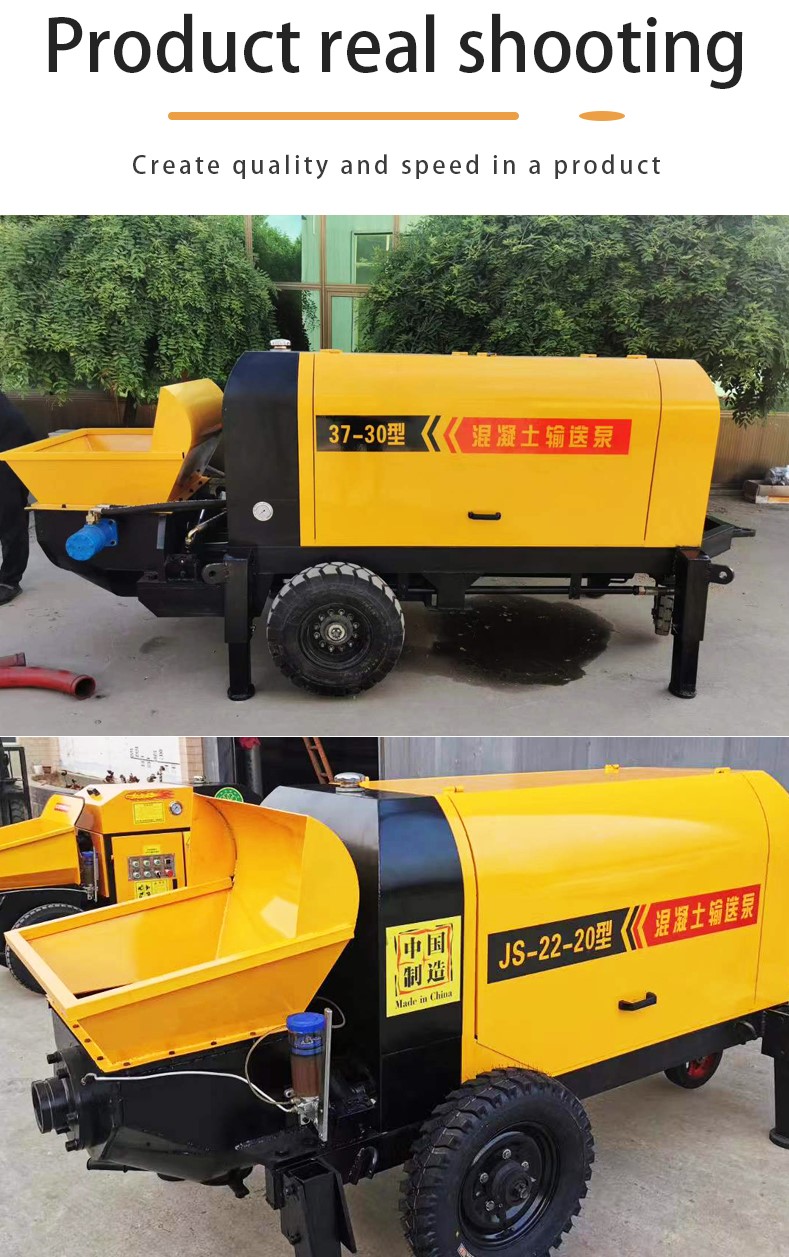

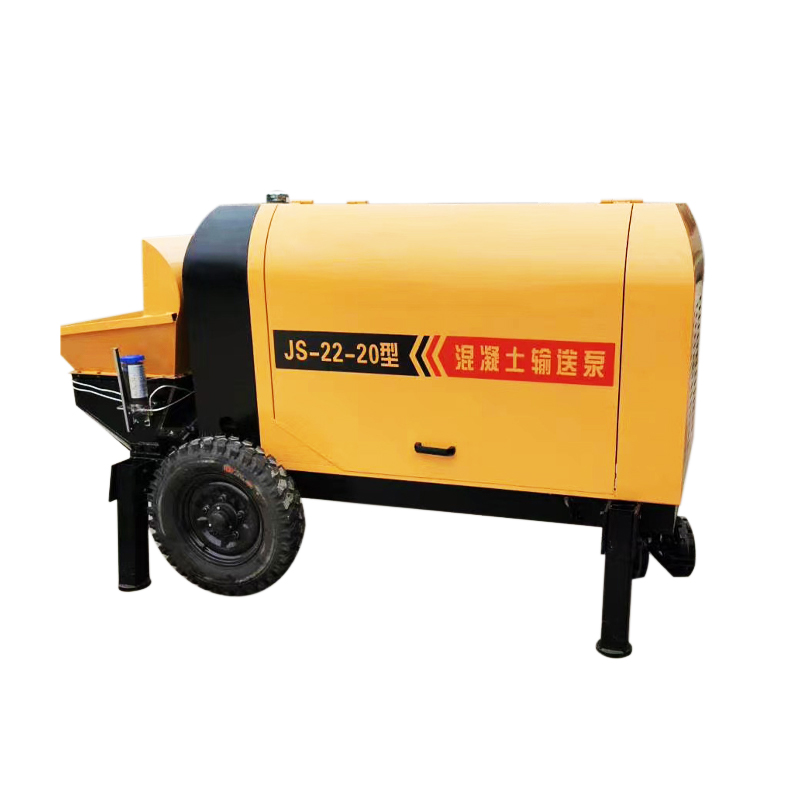

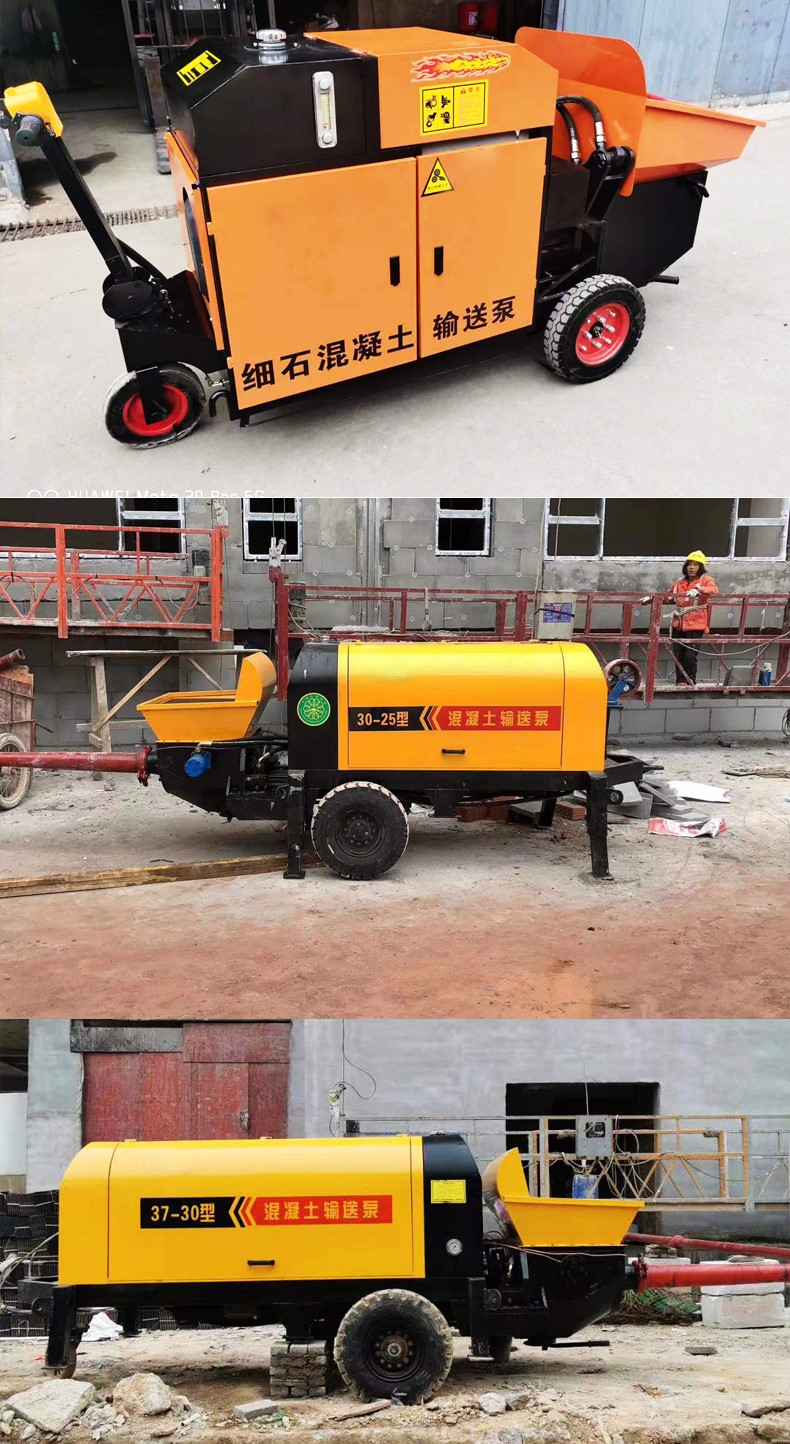

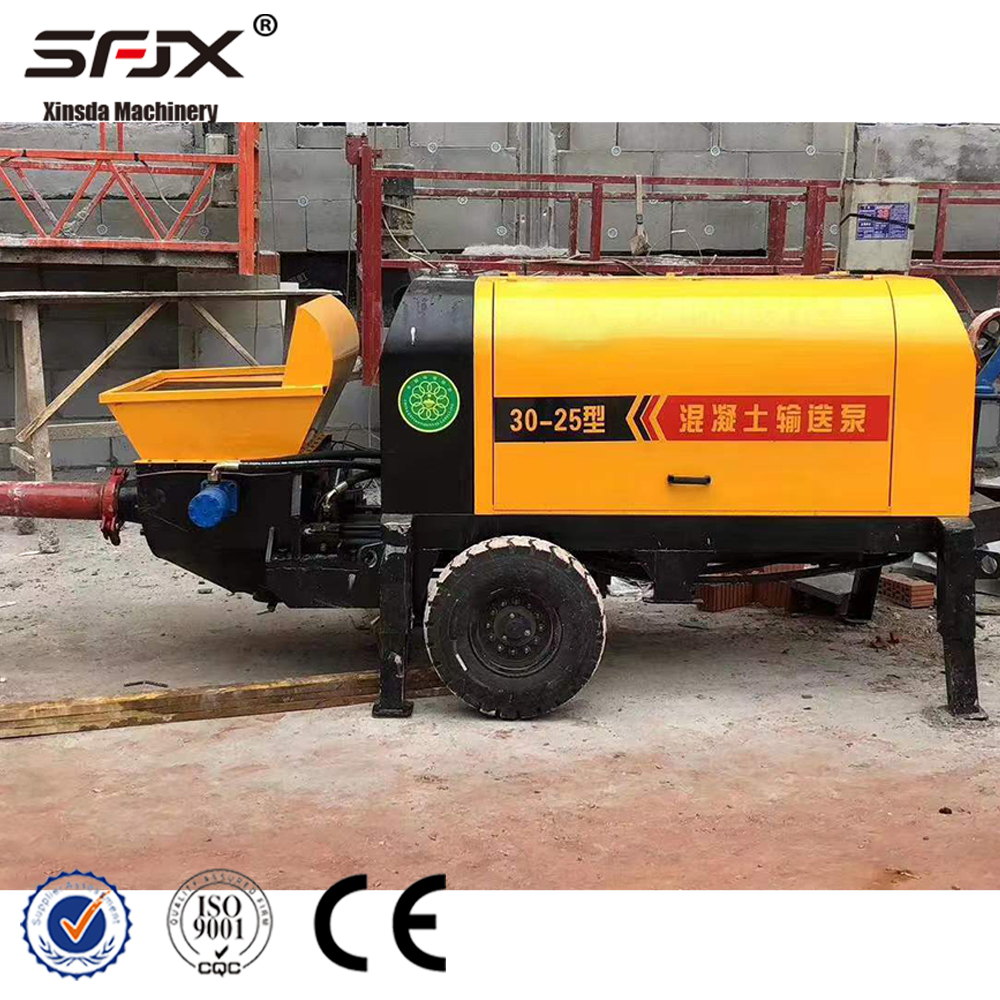

The original photographs show multiple configurations, including equipment labelled JS-22-20, 30-25 and 37-30. These references are retained to illustrate the range of configurations shown; the JS-20 specification table should not be applied to every pictured model. Confirm the required model, power supply, operating conditions and final supplied configuration before ordering.

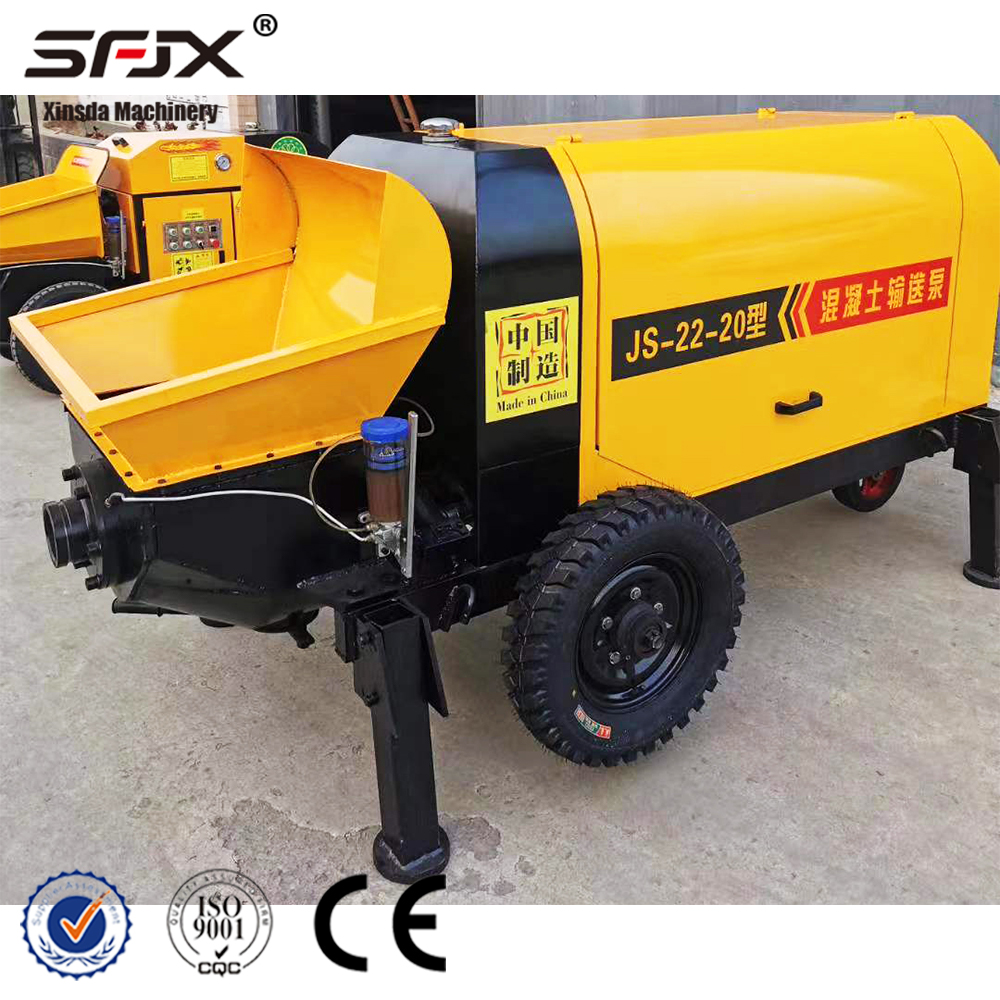

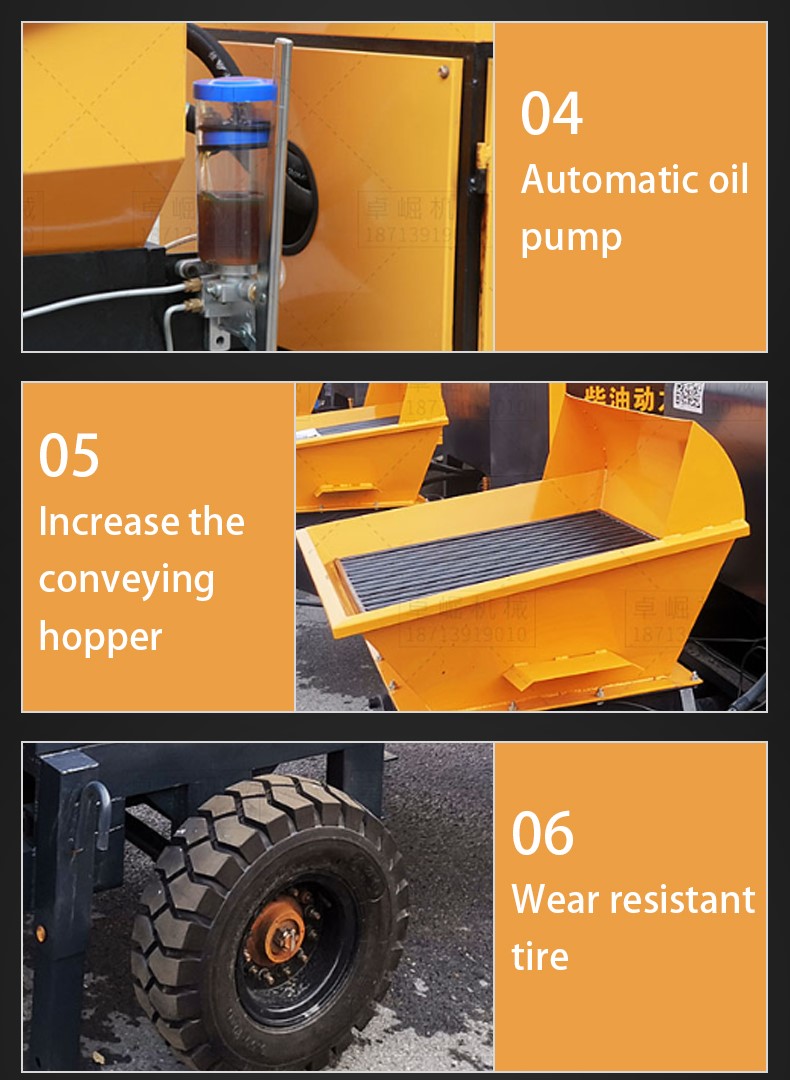

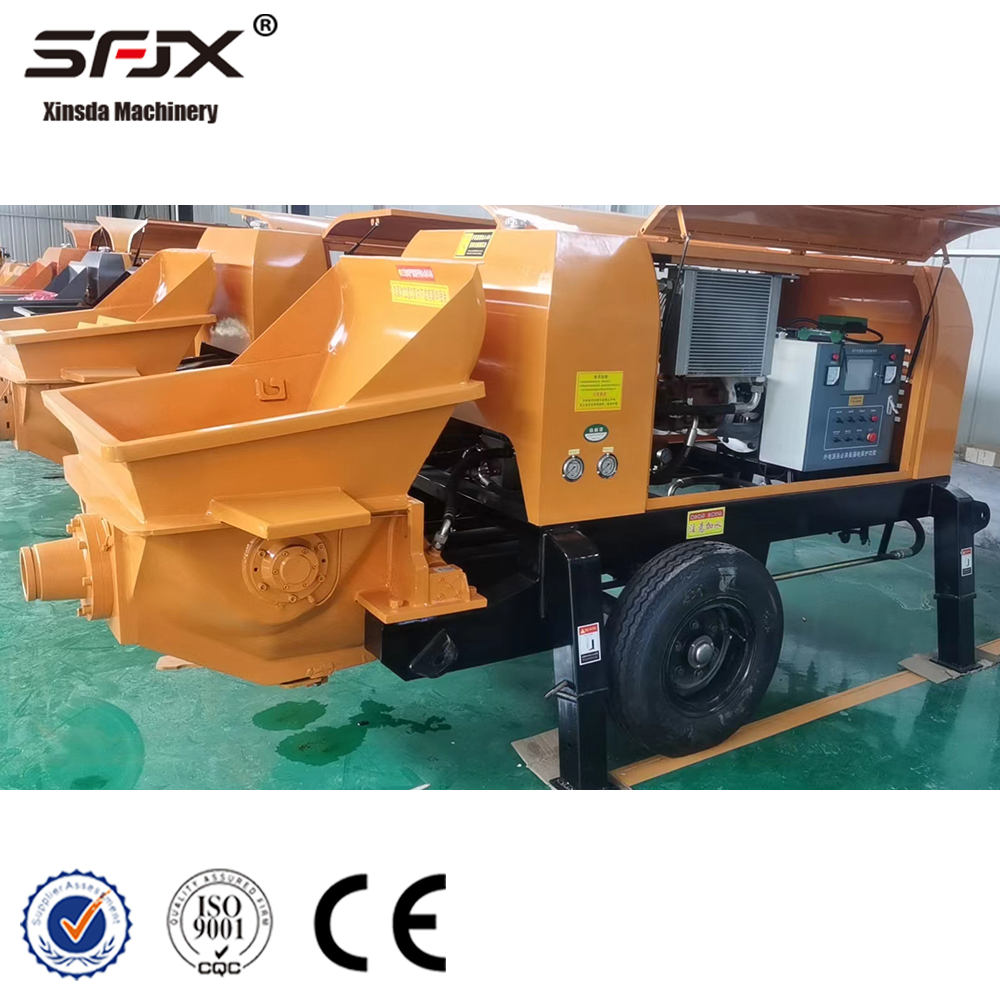

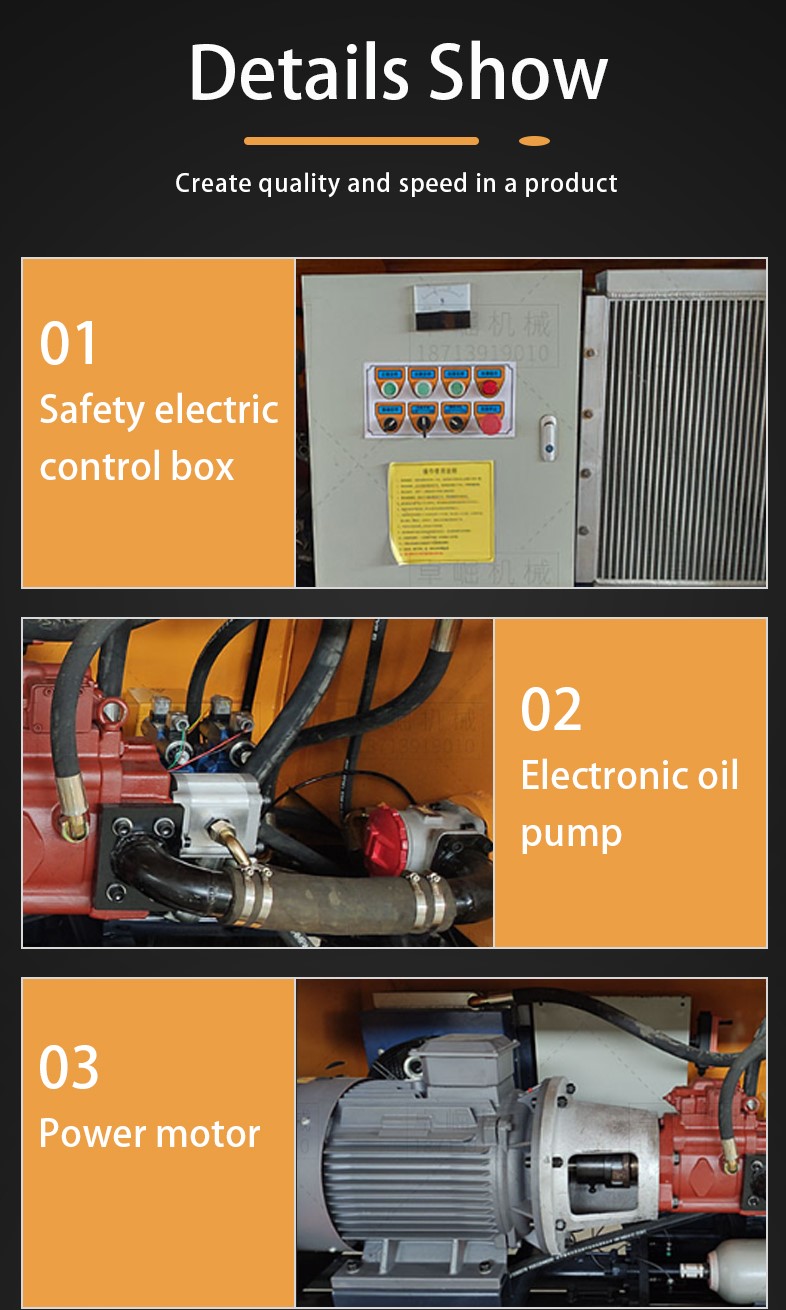

Product and component images include the hopper, electric control box, motor, hydraulic assembly, wheels and support legs, followed by factory and packaging information from the source listing.
Source: Alibaba product 1601934265838
Product gallery
Product details
Technical data
Specifications
| Model | JS-20 (also listed as JS20) |
|---|---|
| Brand | XINSDA |
| Product type | Secondary structure column pump |
| Power source | Electric |
| Motor power | 22 kW (22000 W) |
| Productivity | 10 m³/h |
| Maximum horizontal conveying distance | 100 m |
| Maximum vertical conveying distance | 40 m |
| Dimensions (L × W × H) | 1800 × 750 × 1400 mm |
| Weight | 1000 kg |
| Application | Construction engineering |
| Concrete pump type | Electric-motor concrete pump |
| Core components | Bearing, motor, pressure vessel, pump |
| Warranty | 1 year |
| After-warranty service | Online service |
| Color | According to customer requirements |
| Place of origin | Henan, China |
| Video outgoing inspection | Provided |
| Machinery test report | Provided |
| Listed selling point | High load moment |
| Selling unit | Single item |
| Additional configuration labels in photos | JS-22-20 / 30-25 / 37-30; configuration references shown in source images |
| Configuration note | Technical values follow the JS-20 listing, not every pictured model. Confirm availability and matched specifications before ordering. |
At a glance
Key features
- 22 kW electric motor with a listed output of 10 m³/h.
- Listed conveying distances of up to 100 m horizontally and 40 m vertically.
- For construction engineering and secondary structure column work.
- Original photographs illustrate multiple configurations and detailed pump components.
- Video outgoing inspection, machinery test report and customer-specified colors are listed.
